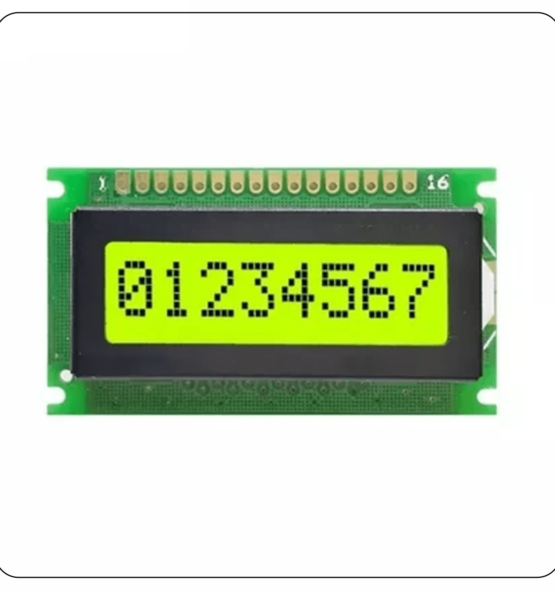

Character 8×1 LCD module is a monochromatic character LCD module with 8 characters x 1 lines, built-in SPLC780C controller (fully compatible with the commonly used controller HD44780 in the industry), 6800 4-bit/8-bit parallel interface, 3.3V or 5V selectable voltage, white LED backlight, the brightness can be adjusted by the resistance behind the board, the white background is blue after lighting, and the working temperature is from minus 20 degrees to 70 degrees above zero. For any other custom requests, feel free to contact us.
Availability:In Stock
| Manufacturer | SINDA |
| Part Number | SDGB12864-01 |
| Display Format | 128x64 dots |
| Interface | 8-bit Parallel |
| IC or Equivalent | AIP310107 SBN0064 |
| Connection | Pin Header |
| Outline Dimension | 54.00(W)x50.00(H)x8.00(T)mm |
| Visual Area | 43.50x29.00mm |
| Active Area | 40.92x20.92mm |
| Dot (Pixel) Size | 0.28x0.35mm |
| Dot (Pixel) Pitch | 0.32x0.39mm |
| IC Package | COB |
| Display Type | FSTN /STN. Gray/Yellow-Green/Blue |
| Viewing Direction | 6:00/12:00 |
| Power Supply(Typ) | 5.0V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface |
| 128 x 64 | SDGB12864-01 | 54.00(W)x50.00(H)x8.00(T)mm | 43.50x29.00mm | 40.92x20.92mm | AIP310107 SBN0064 | 8-bit Parallel |
| 128 x 32 | SDGB12864-02 | 93.00(W)x70.00(H)x12.50(T)mm | 72.00x39.00mm | 66.52x33.24mm | AIP31107 SBN0064 | 8-bit Parallel |
| 128 x 64 | SDGB12864-03 | 78.00(W)x70.00(H)x12.50(T)mm | 62.00x44.00mm | 56.28x38.36mm | T6963 RA6963 | 8-bit Parallel |
| 128 x 64 | SDGB12864-04 | 93.00(W)x70.00(H)x12.50(T)mm | 72.00x39.00mm | 66.52x33.24mm | ST7920 AIP31020 | 8-bit Parallel |
| 128 x 64 | SDGB12864-05 | 78.00(W)x70.00(H)x12.50(T)mm | 62.00x44.00mm | 56.28x38.36mm | AIP31107 SBN0064 | 8-bit Parallel |
| 128 x 64 | SDGB12864-06 | 93.00(W)x70.00(H)x12.50(T)mm | 72.00x39.00mm | 66.52x33.24mm | T6963 RA6963 | 8-bit Parallel |
| 128 x 64 | SDGB12864-07 | 93.00(W)x70.00(H)x12.50(T)mm(T)mm | 72.00x39.00mm | 66.52x33.24mm | AIP31107 SNB0064 | 8-bit Parallel |
| 128 x 64 | SDGB12864-08 | 75.00(W)x52.60(H)x12.50(T)mm | 60.00x32.50mm | 655.01x27.49mm | AIP31107 SNB0064 | 8-bit Parallel |
| 128 x 64 | SDGB12864-09 | 93.00(W)x70.00(H)x12.50(T)mm | 72.00x39.00mm | 66.52x33.24mm | ST7920 AIP31020 | 8-bit Parallel |
| 128 x 64 | SDGB12864-10 | 93.00(W)x85.00 (H)x11.20(T)mm | 72.00x39.00mm | 66.52x33.24mm | AIP31020 ST7920 | 8-bit Parallel |
