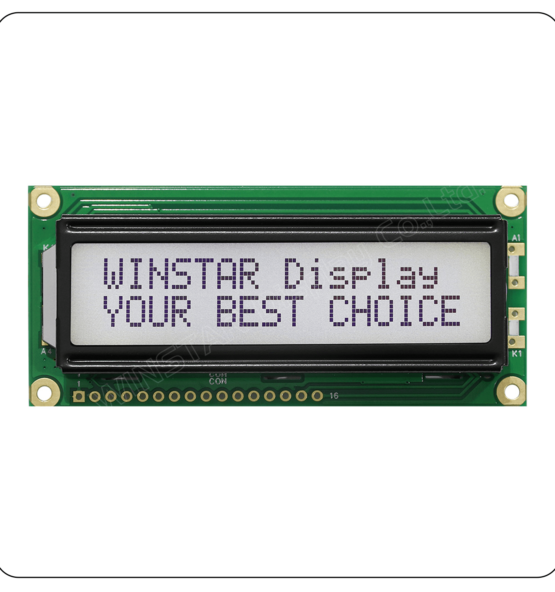

The 16×2 LCD displays are available in STN or FSTN LCD modes with or without an LED backlight. The backlight color options include yellow green,RGB or white color while offering a wide operating temperature range from -20 to 70 degrees Celsius. This display has an optimal view of 6:00/12:00. This display operates at 3.3V/5V supply voltage and is RoHS compliant. For any other custom requests, feel free to contact us.
Availability:In Stock
| Manufacturer | SINDA |
| Part Number | SDGB12864-01 |
| Display Format | 128x64 dots |
| Interface | 8-bit Parallel |
| IC or Equivalent | AIP310107 SBN0064 |
| Connection | Pin Header |
| Outline Dimension | 54.00(W)x50.00(H)x8.00(T)mm |
| Visual Area | 43.50x29.00mm |
| Active Area | 40.92x20.92mm |
| Dot (Pixel) Size | 0.28x0.35mm |
| Dot (Pixel) Pitch | 0.32x0.39mm |
| IC Package | COB |
| Display Type | FSTN /STN. Gray/Yellow-Green/Blue |
| Viewing Direction | 6:00/12:00 |
| Power Supply(Typ) | 5.0V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface |
| 128 x 64 | SDGB12864-01 | 54.00(W)x50.00(H)x8.00(T)mm | 43.50x29.00mm | 40.92x20.92mm | AIP310107 SBN0064 | 8-bit Parallel |
| 128 x 32 | SDGB12864-02 | 93.00(W)x70.00(H)x12.50(T)mm | 72.00x39.00mm | 66.52x33.24mm | AIP31107 SBN0064 | 8-bit Parallel |
| 128 x 64 | SDGB12864-03 | 78.00(W)x70.00(H)x12.50(T)mm | 62.00x44.00mm | 56.28x38.36mm | T6963 RA6963 | 8-bit Parallel |
| 128 x 64 | SDGB12864-04 | 93.00(W)x70.00(H)x12.50(T)mm | 72.00x39.00mm | 66.52x33.24mm | ST7920 AIP31020 | 8-bit Parallel |
| 128 x 64 | SDGB12864-05 | 78.00(W)x70.00(H)x12.50(T)mm | 62.00x44.00mm | 56.28x38.36mm | AIP31107 SBN0064 | 8-bit Parallel |
| 128 x 64 | SDGB12864-06 | 93.00(W)x70.00(H)x12.50(T)mm | 72.00x39.00mm | 66.52x33.24mm | T6963 RA6963 | 8-bit Parallel |
| 128 x 64 | SDGB12864-07 | 93.00(W)x70.00(H)x12.50(T)mm(T)mm | 72.00x39.00mm | 66.52x33.24mm | AIP31107 SNB0064 | 8-bit Parallel |
| 128 x 64 | SDGB12864-08 | 75.00(W)x52.60(H)x12.50(T)mm | 60.00x32.50mm | 655.01x27.49mm | AIP31107 SNB0064 | 8-bit Parallel |
| 128 x 64 | SDGB12864-09 | 93.00(W)x70.00(H)x12.50(T)mm | 72.00x39.00mm | 66.52x33.24mm | ST7920 AIP31020 | 8-bit Parallel |
| 128 x 64 | SDGB12864-10 | 93.00(W)x85.00 (H)x11.20(T)mm | 72.00x39.00mm | 66.52x33.24mm | AIP31020 ST7920 | 8-bit Parallel |
