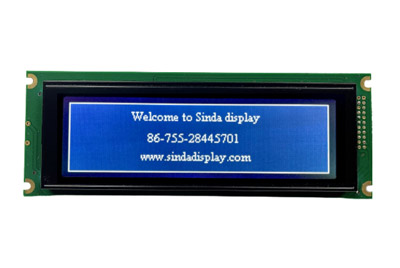

240x64 Graphic LCD Module
Manufacturer: SINDA
Product Name: Monochrome Graphic Module
Backlight: White / Yellow-Green
This 240x64 dots Graphic LCD module offers a wide operating temperature range from -20 to 70 degrees Celsius. The best view for this monitor is 6:00/12:00. The monitor operates on a 5V supply voltage and is RoHS compliant. Our Graphic LCD Module 240*64 has various different models on shelf and accept custom develop to meet your special requirement. We can develop different interface like I2C, Serial, and we also have different font available. We have regular stock to support immediate delivery. Welcome to contact us.
ATTRIBUTES
- Manufacturer
- Part Number
- Display Format
- Interface
- IC or Equivalent
- Connection
- Outline Dimension
- Visual Area
- Active Area
- Dot (Pixel) Size
- Dot (Pixel) Pitch
- IC Package
- Display Type
- Viewing Direction
- Power Supply(Typ)
- Operating Temperature
- Storage Temperature
- SINDA
- SDGB24064-03
- 240x64 dots
- 8-bit Parallel
- RA6963
- Pin Header
- 180.00(W)x100.00(H)x12.60(T)mm
- 132.00x39.00mm
- 127.15x33.87mm
- 0.48x0.48mm
- 0.53x0.53mm
- COB
- FSTN /STN. Gray/Yellow-Green/Blue
- 6:00/12:00
- 3.3V/5.0V
- -20℃~70℃
- -30℃~80℃
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
| 240 x 64 | SDGB24064-03 | 180.00(W)x100.00(H)x12.60(T)mm | 132.00x39.00mm | 127.15x33.87mm | RA6963 | 8-bit Parallel | Contact Us |
| 240 x 64 | SDGB24064-11 | 180.00(W)x65.00(H)x12.60(T)mm | 132.00x39.00mm | 127.15x33.87mm | RA6963 | 8-bit Parallel | Contact Us |
