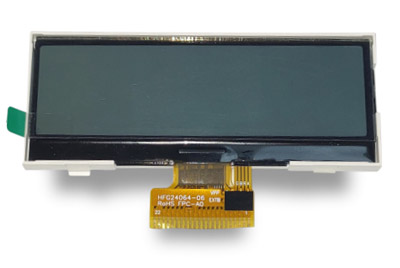

COG 240X64 Graphic LCD Module
Manufacturer: SINDA
Product Name:240x64 COG Character LCD Display | 240x64 Chip on Glass LCD Display
This 240x64 character chip-on-glass (COG) LCD shows blue pixels on a gray background. As a COG display, there's no PCB and the controller/driver is directly bonded to the glass of the display. The Liquid Crystal Display offers a wide operating temperature range from -20 to 70 degrees Celsius. The best view for this monitor is 6:00/12:00. The monitor operates on a 3.3V supply voltage and is RoHS compliant. Sinda Display is professional manufacturer of Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Pump controller etc. For any other custom requests, feel free to contact us.
ATTRIBUTES
- Manufacturer
- Part Number
- Display Format
- Interface
- IC or Equivalent
- Connection
- Outline Dimension
- Visual Area
- Active Area
- Character Size
- Dot (Pixel) Size
- Dot (Pixel) Pitch
- IC Package
- Display Type
- Viewing Direction
- Power Supply(Typ)
- Operating Temperature
- SINDA
- SDGG24064-01
- 240 x 64 dots
- Parallel
- ST75256
- FPC
- 81.50(W)x33.00(H)x5.70(T)mm
- 75.20x21.70mm
- 73.66x19.63mm
- 0.29x0.29mm
- 0.307x0.307mm
- COG
- FSTN /STN. Gray/Yellow-Green/Blue
- 6:00/12:00
- 3.3V
- -20℃~70℃
- --30℃~80℃
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
| 240 x 64 dots | SDGG24064-01 | 81.50(W)x33.00(H)x5.70(T)mm | 75.20x21.70mm | 73.66x19.63mm | ST75256 | Parallel | Contact Us |
