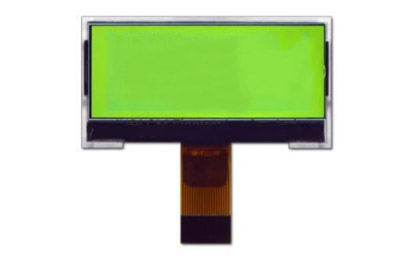

COG 128X48 Graphic LCD Module
Manufacturer: SINDA
Product Name: 128X48 COG Graphic LCD Display | 128X48 Chip on Glass LCD Display
The Liquid Crystal Display offers a wide operating temperature range from -20 to 70 degrees Celsius. The best view for this monitor is 6:00/12:00. The monitor operates on a 3.3V supply voltage and is RoHS compliant. Sinda Display is professional manufacturer of Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Pump controller etc. For any other custom requests, feel free to contact us.
ATTRIBUTES
- Manufacturer
- Part Number
- Display Format
- Interface
- IC or Equivalent
- Connection
- Outline Dimension
- Visual Area
- Active Area
- Character Size
- Dot (Pixel) Size
- Dot (Pixel) Pitch
- IC Package
- Display Type
- Viewing Direction
- Power Supply(Typ)
- Operating Temperature
- SINDA
- SDGG12848-05
- 128x48 Dots
- 4-SPI
- UC1701X
- FPC
- 70.60(W)x33.00(H)x2.80(T)mm
- 67.00x25.00mm
- 62.69x21.57mm
- 0.46x0.42mm
- 0.49x0.45mm
- COG
- FSTN/STN Y-G/BLUE/GRAY
- 6:00/12:00
- 3.3V
- --20℃~70℃
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
| 128x48 Dots | SDGG12848-05 | 70.60(W)x33.00(H)x2.80(T)mm | 67.00x25.00mm | 62.69x21.57mm | UC1701X | 4-SPI | Contact Us |
