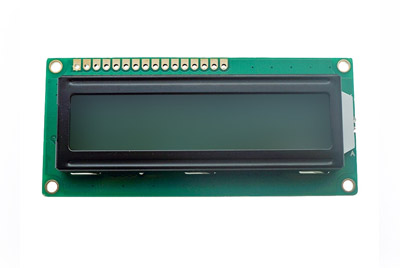

Character 16x2 LCD Module
Manufacturer: SINDA
Product Name: 16x2 Character LCD Module Series | 16x2 Character Display
Backlight: White/RGB /Yellow-Green
The 16x2 LCD displays are available in STN or FSTN LCD modes with or without an LED backlight. The backlight color options include yellow green,RGB or white color while offering a wide operating temperature range from -20 to 70 degrees Celsius. This display has an optimal view of 6:00/12:00. This display operates at 3.3V/5V supply voltage and is RoHS compliant. For any other custom requests, feel free to contact us.
ATTRIBUTES
- Manufacturer
- Part Number
- Display Format
- Interface
- IC or Equivalent
- Connection
- Outline Dimension
- Viewing Area
- Active Area
- Character Size
- IC Package
- Display Type
- Viewing Direction
- Power Supply(Typ)
- Operating Temperature
- Storage Temperature
- SINDA
- SDCB1602-01
- 16x2 Character
- 6800 4-bit / 8-bit Parallel
- ST7066U AIP31066 HD44780
- Pin Header
- 80.00(W)x36.00(H)x13.50(T)mm
- 64.50x14.50mm
- 55.70x11.00mm
- 2.90x5.15mm
- COB
- FSTN /STN. Gray/Yellow-Green/Blue
- 6:00/12:00
- 3.3V/ 5.0V
- -20℃~70℃
- -30℃~80℃
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
| 16 x 2 | SDCB1602-01 | 80.00(W)x36.00(H)x13.50(T)mm | 64.50x14.50mm | 55.70x11.00mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
| 16 x 2 | SDCB1602-02 | 80.00(W)x36.00(H)x11.80(T)mm | 64.30x16.00mm | 55.45x10.75mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
| 16 x 2 | SDCB1602-03 | 84.00(W)x44.00(H)x12.00(T)mm | 64.50x16.00mm | 56.20x11.50mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
| 16 x 2 | SDCB1602-04 | 65.00(W)x36.70(H)x12.70(T)mm | 63.00x13.50mm | 49.70x9.40mm | ST7066U AIP31066 HD44780 SPLC780D | 6800 4-bit / 8-bit Parallel | Contact Us |
| 16 x 2 | SDCB1602-05 | 80.00(W)x36.00(H)x9.90(T)mm | 65.00x15.96mm | 56.20x11.20mm | ST7066U AIP31066 HD44780 SPLC780D | 6800 4-bit / 8-bit Parallel | Contact Us |
| 16 x 2 | SDCB1602-08 | 80.00(W)x36.00(H)x11.50(T)mm | 64.50x14.50mm | 55.70x11.00mm | ST7066U AIP31066 HD44780 SPLC780D | 6800 4-bit / 8-bit Parallel | Contact Us |
| 16 x 2 | SDCB1602-09 | 80.00(W)x36.00(H)x11.50(T)mm | 64.50x14.50mm | 55.70x11.00mm | ST7066U AIP31066 HD44780 SPLC780D | 6800 4-bit / 8-bit Parallel | Contact Us |
| 16 x 2 | SDCB1602-10 | 122.00(W)x44.00(H)x14.00(T)mm | 99.00x24.00mm | 94.80x19.90mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
| 16 x 2 | SDCB1602-12 | 80.00(W)x36.00(H)x11.50(T)mm | 64.50x14.50mm | 55.70x11.00mm | ST7066U AIP31066 HD44780 SPLC780D | 6800 4-bit / 8-bit Parallel | Contact Us |
