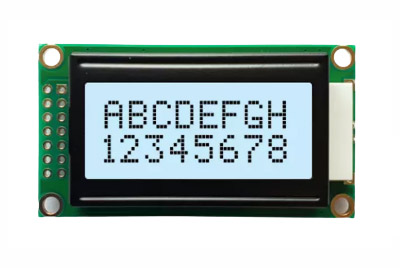

Character 8x2 LCD Module
Manufacturer: SINDA
Product Name: Character 8x2 LCD Module
Backlight: White/Yellow-Green
This LCD display offers a wide operating temperature range from -20 to 70 degrees Celsius. The best view for this monitor is 6:00/12:00. The monitor operates on a 3.3V/5V supply voltage and is RoHS compliant. Sinda Display is professional manufacturer of Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Pump controller etc. For any other custom requests, feel free to contact us.
ATTRIBUTES
- Manufacturer
- Part Number
- Display Format
- Interface
- IC or Equivalent
- Connection
- Outline Dimension
- Viewing Area
- Active Area
- Character Size
- IC Package
- Display Type
- Viewing Direction
- Power Supply(Typ)
- Operating Temperature
- Storage Temperature
- SINDA
- SDCB0802-01
- 8x2 Character
- 6800 4-bit / 8-bit Parallel
- ST7066U AIP31066 HD44780
- Pin Header
- 58.00(W)x32.00(H)x13.50(T)mm
- 38.00x16.00mm
- 27.81x11.50mm
- 2.96x5.56mm
- COB
- FSTN /STN. Gray/Yellow-Green/Bule
- 6:00/12:00
- 5.0V
- -20℃~70℃
- -30℃~80℃
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
| 8 x 2 | SDCB0802-01 | 58.00(W)x32.00(H)x13.50(T)mm | 38.00x16.00mm | 27.81x11.50mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
| 8 x 2 | SDCB0802-02 | 58.00(W)x32.00(H)x13.50(T)mm | 38.00x16.00mm | 27.81x11.50mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
| 8 x 2 | SDCB0802-03 | 45.00(W)x40.00(H)x10.00(T)mm | 39.00x16.00mm | 27.81x11.50mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
| 8 x 2 | SDCB0802-05 | 40.00(W)x35.80(H)x8.20(T)mm | 30.00x14.00mm | 25.74x9.48mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
