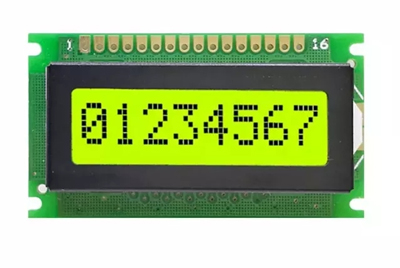

Character 8x1 LCD Module
Manufacturer: SINDA
Product Name: 8x1 Character LCD Module Series | 8x1 Character Display
Backlight: White/Yellow-Green
Character 8x1 LCD module is a monochromatic character LCD module with 8 characters x 1 lines, built-in SPLC780C controller (fully compatible with the commonly used controller HD44780 in the industry), 6800 4-bit/8-bit parallel interface, 3.3V or 5V selectable voltage, white LED backlight, the brightness can be adjusted by the resistance behind the board, the white background is blue after lighting, and the working temperature is from minus 20 degrees to 70 degrees above zero. For any other custom requests, feel free to contact us.
ATTRIBUTES
- Manufacturer
- Part Number
- Display Format
- Interface
- IC or Equivalent
- Connection
- Outline Dimension
- Viewing Area
- Active Area
- Character Size
- IC Package
- Display Type
- Viewing Direction
- Power Supply(Typ)
- Operating Temperature
- Storage Temperature
- SINDA
- SDCB0801-03
- 8x1 Character
- 6800 4-bit / 8-bit Parallel
- ST7066U AIP31066 HD44780
- Pin Header
- 60.00(W)x33.00(H)x10.70(T)mm
- 44.00x13.00mm
- 40.83x7.93mm
- 4.43x7.93mm
- COB
- FSTN /STN. Gray/Yellow-Green/Bule
- 6:00/12:00
- 5.0V
- -20℃~70℃
- -30℃~80℃
| Display Format | Model No. | Outline Dimension | Viewing Area | Active Area | IC | Interface | Datasheet Download |
| 8 x 1 | SDCB0801-01 | 84.00(W)x44.00(H)x13.50(T)mm | 62.00x17.80mm | 58.87x11.12mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
| 8 x 1 | SDCB0801-02 | 80.00(W)x36.00(H)x13.70(T)mm | 38.00x16.00mm | 35.18x8.28mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
| 8 x 1 | SDCB0801-03 | 60.00(W)x33.00(H)x10.70(T)mm | 44.00x13.00mm | 40.83x7.93mm | ST7066U AIP31066 HD44780 | 6800 4-bit / 8-bit Parallel | Contact Us |
